What is Survival Analysis?

Survival analysis is a branch of statistics that analyzes the expected duration of time until one or more events happen, such as death in biological organisms, relapse in patients, failure in mechanical systems, or completion of a task in human studies. It's particularly useful when dealing with censored data, where the event of interest has not yet occurred for some subjects by the end of the observation period, or they are lost to follow-up. This makes it distinct from standard regression techniques, which typically assume complete data for all observations.

The core challenge in survival analysis is handling this censoring. Imagine tracking how long customers stay subscribed to a service. If, at the end of your study, some customers are still subscribed, you don't know their exact churn time. Survival analysis provides methods to incorporate this partial information without discarding the valuable data from these long-term customers.

Kaplan-Meier Curves: Visualizing Survival

The Kaplan-Meier estimator, also known as the product-limit estimator, is a non-parametric statistic used to estimate the survival function from lifetime data. It's a fundamental tool for visualizing survival probabilities over time.

The Kaplan-Meier curve plots the estimated probability of survival on the y-axis against time on the x-axis. At each time point where an event occurs (e.g., a customer churns, a patient dies), the survival probability is recalculated. The curve is a step function, dropping at each event time. Importantly, it accounts for censored observations by effectively removing those individuals from the risk set at the time they are censored, so they no longer contribute to the probability calculation for subsequent time periods.

Let's consider the calculation conceptually. If you start with 100 subjects, and 5 events occur at time t1, and 3 subjects are censored at time t2 (before any further events), the survival probability at t1 will be calculated based on the initial 100 subjects. However, the survival probability calculated after t1 will be based on the remaining 95 subjects. The censored subjects at t2 will continue to be considered 'at risk' up to time t2, but will not be included in calculations for times beyond t2.

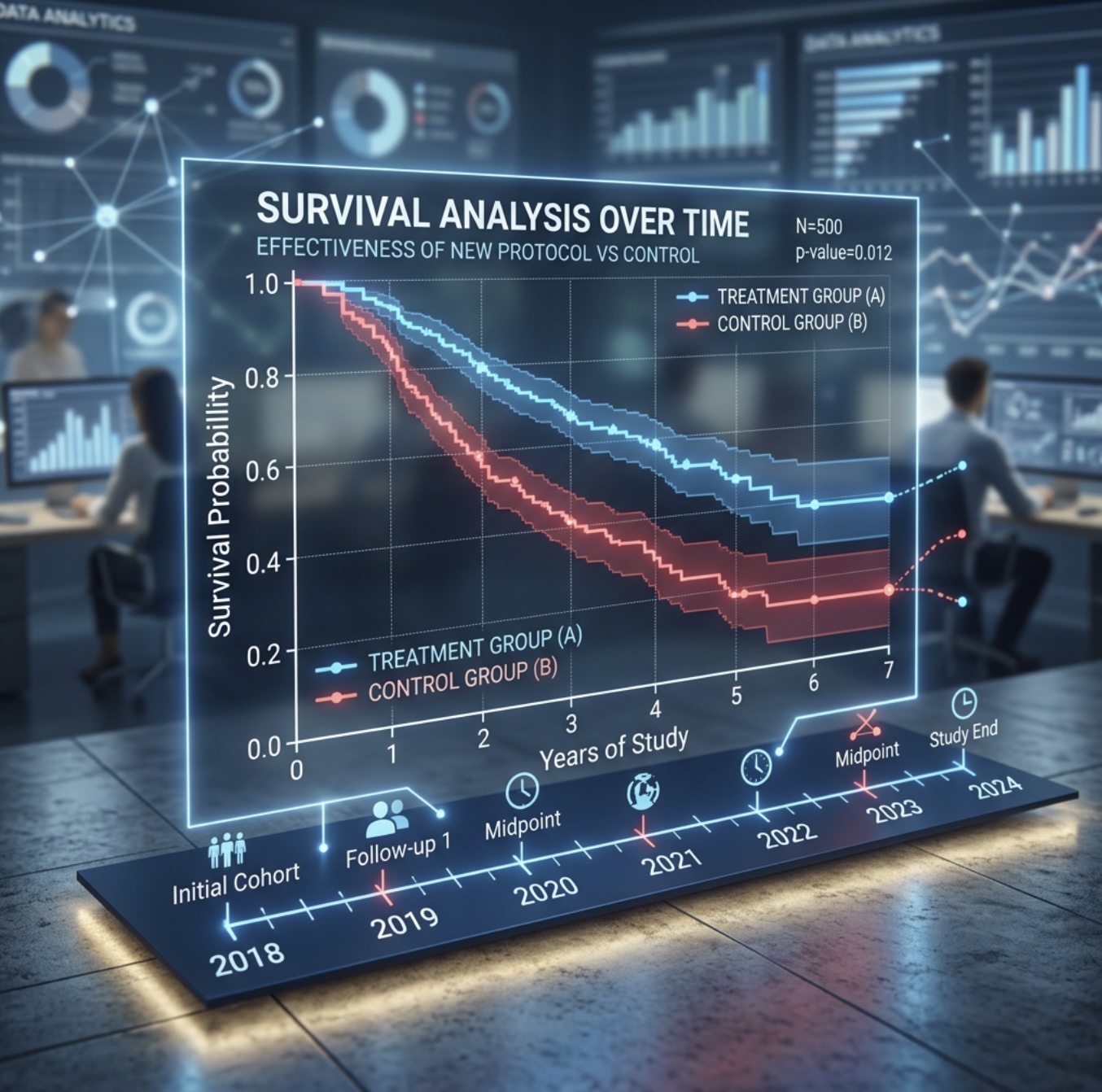

A sample Kaplan-Meier survival curve showing decreasing probability over time.

Understanding Hazard Ratios with the Cox Proportional Hazards Model

While Kaplan-Meier curves provide a descriptive overview, the Cox Proportional Hazards (Cox PH) model allows us to investigate the effect of covariates (independent variables) on the survival time. Developed by Sir David Cox in 1972, this model is a semi-parametric model that estimates the hazard rate, which is the instantaneous risk of experiencing the event at a particular time, given that the individual has survived up to that time.

The core assumption of the Cox PH model is the proportional hazards assumption. This means that the hazard rate for any individual is proportional to the baseline hazard rate, and this proportionality is constant over time for all individuals. Mathematically, the hazard function for an individual i can be expressed as:

hᵢ(t) = h₀(t) * exp(β₁Xᵢ₁ + β₂Xᵢ₂ + ... + βₚXᵢₚ)

Where:

  • hᵢ(t) is the hazard rate for individual i at time t.
  • h₀(t) is the baseline hazard rate (the hazard when all covariates are zero). This is the non-parametric part of the model.
  • exp(...) is the exponential function.
  • βⱼ are the regression coefficients for the covariates. These represent the change in the log hazard ratio associated with a one-unit increase in the covariate.
  • Xᵢⱼ are the values of the covariates for individual i.

The term exp(βⱼ) is known as the hazard ratio (HR) for covariate Xⱼ. If HR > 1, the covariate increases the hazard (reduces survival time). If HR < 1, the covariate decreases the hazard (increases survival time). If HR = 1, the covariate has no effect on the hazard.

For example, if we are studying patient survival after a medical procedure and a covariate is 'age', a hazard ratio of 1.05 for age would mean that for every one-year increase in age, the hazard of death increases by 5%, assuming other factors remain constant. The model estimates the β coefficients, which are then exponentiated to produce these interpretable hazard ratios.

Python Implementation: A Practical Example

Let's walk through a simplified example using Python. We'll use the `lifelines` library, which is excellent for survival analysis.

First, ensure you have the library installed:

pip install lifelines pandas numpy

Now, let's generate some synthetic data and apply the Kaplan-Meier estimator and Cox PH model.


import pandas as pd
import numpy as np
from lifelines import KaplanMeierFitter
from lifelines import CoxPHFitter

# Generate synthetic data
np.random.seed(42)
n_samples = 100

# Survival times (e.g., time to event)
times = np.random.exponential(scale=50, size=n_samples) + 10

# Censoring: assume some observations are censored
censored = np.random.choice([0, 1], size=n_samples, p=[0.7, 0.3]) # 0 = event, 1 = censored

# Adjust times for censoring
observed_times = np.where(censored == 1, times * np.random.uniform(0.5, 0.9), times)

# Covariates (e.g., treatment group, age)
covariates = pd.DataFrame({
    'treatment': np.random.randint(0, 2, size=n_samples),
    'age': np.random.normal(loc=50, scale=10, size=n_samples)
})

data = pd.concat([pd.DataFrame({'observed_time': observed_times, 'event_observed': 1 - censored}), covariates], axis=1)

# --- Kaplan-Meier Curve ---
kf = KaplanMeierFitter()
kf.fit(data['observed_time'], event_observed=data['event_observed'])

print("Kaplan-Meier Curve:\n")
kf.plot_survival_function()
# In a real notebook, you would add plt.show() here

# --- Cox Proportional Hazards Model ---
cph = CoxPHFitter()
cph.fit(data, duration_col='observed_time', event_col='event_observed')

print("\nCox Proportional Hazards Model Summary:\n")
cph.print_summary()

# Interpretation of results:
cph.summary

The output from kf.plot_survival_function() will render a Kaplan-Meier curve. The cph.print_summary() method provides a table detailing the coefficients (β), standard errors, p-values, and hazard ratios for each covariate. You can then examine the hazard ratios to understand how 'treatment' and 'age' influence the time to event, controlling for the baseline hazard.

The surprising detail here is not the complexity of the model, but how readily Python libraries abstract away the intricate mathematical derivations, allowing practitioners to focus on interpretation and application. The `lifelines` library, in particular, makes fitting these models as straightforward as fitting a linear regression.

When to Use Survival Analysis?

Survival analysis is indispensable in fields where understanding time-to-event phenomena is critical. Beyond medicine and engineering, it finds applications in:

  • Customer Churn Prediction: Estimating how long customers remain active and identifying factors that lead to churn.
  • Marketing Campaigns: Analyzing the duration of customer engagement after a campaign.
  • Reliability Engineering: Predicting the lifespan of components or systems.
  • Human Resources: Studying employee retention and time to departure.
  • Social Sciences: Analyzing time to marriage, divorce, or other life events.

The ability to handle censored data and quantify the impact of various factors makes survival analysis a powerful tool for making informed predictions and decisions in scenarios involving time-dependent outcomes.

What nobody has addressed yet is the optimal method for validating the proportional hazards assumption across complex, multi-dimensional datasets, especially when dealing with non-linear covariate effects that might violate the core assumption without being immediately obvious in standard diagnostics.
