The Limits of Standard Chip Testing
The semiconductor industry has long relied on binary pass/fail metrics for chip quality. A chip either meets its specifications within defined tolerances, or it doesn't. This rigorous testing, often involving complex Automated Test Equipment (ATE), ensures that chips adhere to their design parameters. However, this approach has a critical blind spot: it doesn't account for how a chip might behave under real-world operating conditions, which can differ significantly from the controlled environment of a test bench.
The challenge lies in the fact that a chip can technically pass all its tests and still exhibit anomalous behavior or fail prematurely when integrated into a larger system. These failures are not due to outright design flaws or manufacturing defects that trigger standard error conditions. Instead, they stem from subtle deviations in performance that only manifest when the chip interacts with other components, operates at specific temperatures, or is subjected to particular workloads. These are the 'smart outliers' – devices that appear good on paper but are fundamentally unpredictable in practice.
Consider a chip designed for a high-frequency communication system. It might pass all static tests, demonstrating correct signal integrity and timing. Yet, under dynamic load with varying signal noise, it could introduce subtle jitter or phase errors that disrupt the entire communication chain. The chip itself isn't broken in the traditional sense; it's just not performing as expected within the complex ecosystem it's meant to inhabit. This gap between test-bench performance and field performance is where current testing methodologies fall short.
The implications of these 'smart outliers' are substantial. For semiconductor manufacturers, it means a potential increase in field failures, customer complaints, and costly recalls. For system integrators and end-users, it translates to unreliable products, reduced performance, and potential safety concerns, especially in critical applications like automotive, aerospace, and medical devices. The economic cost of debugging and replacing these subtly defective components can far outweigh the initial testing costs.
Introducing Smart Outlier Detection
Smart Outlier Detection (SOD) emerges as a sophisticated approach to address this gap. It moves beyond simple specification adherence to analyze patterns of behavior, identify subtle anomalies, and predict potential issues before they escalate into field failures. SOD leverages advanced statistical methods, machine learning algorithms, and a deeper understanding of chip operation in its intended environment.

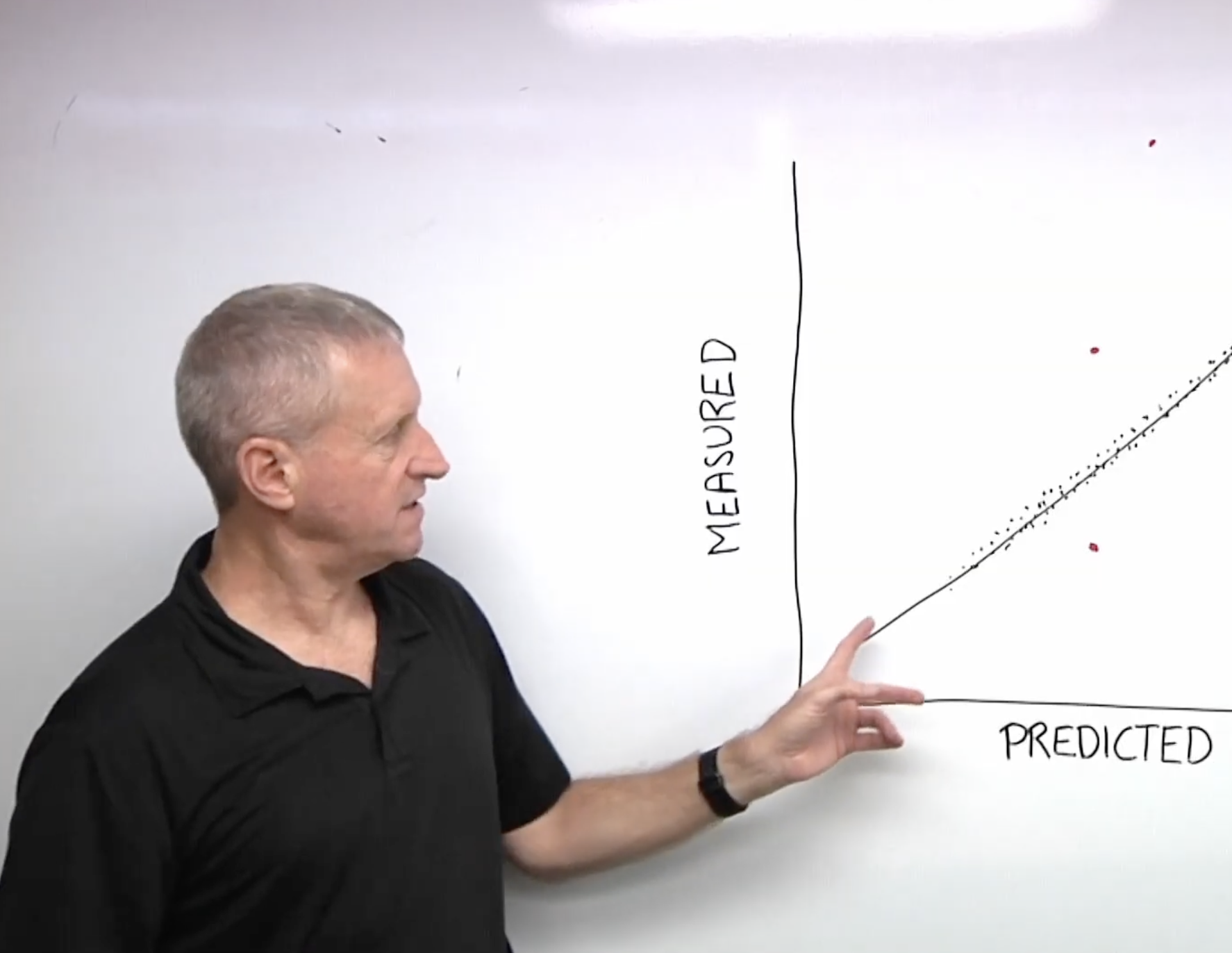

Instead of solely focusing on whether a chip meets a threshold (e.g., voltage, frequency, timing), SOD algorithms examine the distribution and relationships between various test parameters. They look for deviations from typical behavior within the population of 'good' chips. For instance, a chip might have all its measured parameters within spec, but if its performance characteristics are statistically distant from the cluster of other devices that also passed, it might be flagged as a potential outlier. This is akin to identifying a person who is technically healthy by all medical tests but exhibits an unusual gait or speech pattern that suggests an underlying, unmeasured issue.
The core idea is to identify chips that, while technically compliant, represent the fringes of acceptable operational parameters. These chips might be more susceptible to environmental changes (temperature, voltage fluctuations), aging effects, or specific workload patterns. By flagging these devices, manufacturers can implement more targeted quality control, potentially rerouting them for further analysis, adjusting their binning, or even preventing their use in the most demanding applications.
One key aspect of SOD is its ability to learn and adapt. As more data is collected from chips in both test and field environments, the algorithms can refine their understanding of what constitutes 'normal' versus 'anomalous' behavior. This continuous learning process allows the detection of new types of subtle defects that might not have been anticipated by engineers designing the test procedures.
Methodologies and Implementation
Implementing SOD requires a shift in how test data is collected, processed, and analyzed. Traditional ATE systems generate vast amounts of data, but this data is often only used to check against pre-defined limits. SOD requires this data to be treated as a multivariate dataset, where the relationships and distributions between parameters are as important as individual values.
Common techniques employed in SOD include:
- Clustering algorithms (e.g., K-Means, DBSCAN): These algorithms group chips with similar test results. Chips that fall outside of these established clusters or form very small, isolated clusters can be flagged as outliers.
- Density-based methods (e.g., Local Outlier Factor - LOF): LOF measures the local density deviation of a data point with respect to its neighbors. A chip with a significantly lower density than its neighbors is considered an outlier.
- Isolation Forests: This ensemble method builds random trees to isolate anomalies. Outliers are data points that require fewer splits to be isolated.
- Principal Component Analysis (PCA): PCA can be used to reduce the dimensionality of the test data while retaining most of the variance. Outliers may appear as points with high reconstruction error or that lie far from the principal components.
- One-Class SVM: This method learns a boundary around the 'normal' data points. Any data point falling outside this boundary is classified as an outlier.
The data required for effective SOD includes not just the final pass/fail results but also the raw measurement data for each test, along with any contextual information about the test setup (temperature, voltage, frequency). Integrating this richer dataset into the analysis pipeline is crucial. Furthermore, correlation with field failure data is invaluable for training and validating SOD models. By comparing the predictions of the SOD system with actual field failures, engineers can fine-tune the sensitivity and specificity of the detection algorithms.
The computational infrastructure for SOD can range from enhanced capabilities on existing ATE to dedicated big data analytics platforms. For large-volume production, efficient processing is key. This might involve on-device analytics on the ATE, edge computing for pre-processing, or leveraging cloud-based machine learning platforms for complex model training and inference.
The Future of Chip Quality Assurance
Smart Outlier Detection represents a significant evolution in semiconductor quality assurance. It acknowledges that in complex, high-performance systems, 'good enough' is often not sufficient. The pursuit of absolute reliability necessitates a more nuanced understanding of chip behavior, one that looks beyond simple compliance to predict potential issues.
This approach is particularly relevant as chips become more complex, with advanced architectures like multi-core processors, integrated GPUs, and specialized AI accelerators. These complex designs introduce more potential for subtle performance variations. Furthermore, the increasing demand for chips in safety-critical applications, such as autonomous vehicles and advanced medical equipment, raises the stakes considerably. A single subtly defective chip can have catastrophic consequences.
The adoption of SOD promises to enhance product reliability, reduce warranty costs, and build greater customer trust. It moves the industry closer to a state where chips not only meet their specifications but also perform predictably and reliably in the demanding environments they are designed for. As machine learning and data analytics continue to mature, SOD will likely become an indispensable tool in the semiconductor engineer's arsenal, fundamentally redefining what it means for a chip to be truly 'good'.
