Laser Fault Injection Targets RP2350 Secure Debug
Researchers have successfully demonstrated a novel method for bypassing the secure debug features of the Raspberry Pi RP2350 microcontroller. By employing photon-emission-guided laser fault injection, the team was able to induce bit flips in critical memory locations, effectively disabling security mechanisms and granting unauthorized access to the device's internal state.
The Raspberry Pi RP2350 is a widely used microcontroller known for its security features, particularly its secure debug capabilities designed to prevent unauthorized access and tampering. These features are crucial for protecting sensitive data and intellectual property embedded within the chip. The attack described exploits a physical vulnerability, targeting the semiconductor material itself with precisely controlled laser pulses.

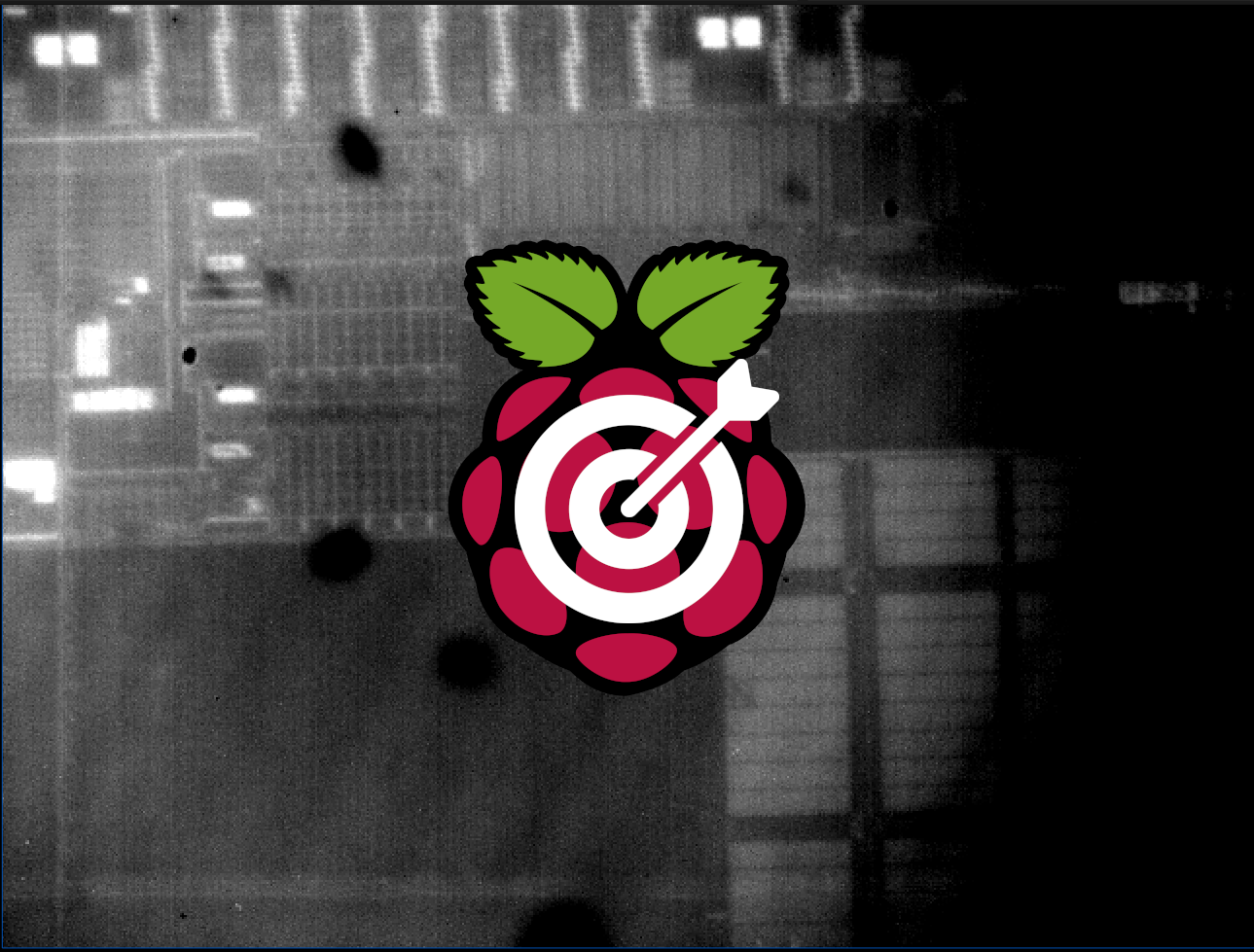

The core of the attack relies on observing the faint light emitted by the silicon when electrical signals propagate through it. This photon emission, though minuscule, can be detected and correlated with specific operations within the chip. By mapping these emissions, attackers can pinpoint the exact moments and locations where specific instructions are being executed or data is being processed. This level of precision is critical for inducing targeted faults.
Once the critical instruction or data path is identified, a focused laser beam is directed at the corresponding area on the chip. The energy from the laser can cause localized heating or ionization, leading to a transient error, commonly known as a bit flip. In the context of secure debug, this bit flip can corrupt the state machine that enforces security protocols, such as disabling debug locks or altering access control flags. The RP2350's secure debug feature, when active, prevents read-back of sensitive registers and code execution, and it's this gatekeeper mechanism that the laser injection targets.
Photon Emission Analysis for Precision Targeting
The breakthrough in this research lies in the 'photon-emission-guided' aspect. Traditional laser fault injection techniques often involve brute-force methods, firing lasers at various locations and times, hoping to stumble upon a successful fault. This is inefficient and time-consuming. The researchers developed a system to capture the photons emitted by the RP2350's transistors as they operate. These photons, typically in the infrared spectrum, are captured by a highly sensitive camera and optical setup.
By analyzing the intensity and patterns of photon emission, the team can create a real-time map of the chip's activity. This map acts like a thermal camera for electrical signals, revealing which transistors are switching and when. For the RP2350, this allowed them to identify the specific sequence of operations that enable or disable secure debug modes. The debug interface on the RP2350 is protected by a fuse-blowing mechanism that permanently enables secure debug. The goal of the attack is to trigger a fault during the fuse-blowing process or during the initial configuration, preventing the fuse from being blown or corrupting the state that enforces the debug lock.
The process involves several steps: first, the device is powered on and put into a state where secure debug is being configured. Second, the photon emission from the chip is captured and analyzed to identify the precise moment and location corresponding to the secure debug enable signal. Third, a pulsed laser is fired at that exact location and time. The laser pulse must be incredibly short and precisely aimed to induce a single-bit error without causing catastrophic damage to the chip.
Implications for Embedded Security
This research highlights a significant physical vulnerability in microcontrollers that are often assumed to be secure against such sophisticated attacks. While laser fault injection is not a new concept, the combination with photon emission analysis for guided targeting represents a significant advancement in the practical application of side-channel attacks. It lowers the barrier to entry for attackers by providing a more deterministic and efficient method than previous techniques.
The RP2350, being a popular choice for embedded systems ranging from IoT devices to educational platforms, means that a wide array of products could potentially be vulnerable if they rely on its secure debug features for protection. The implications extend beyond just the RP2350; this methodology could be adapted to target similar microcontrollers and System-on-Chips (SoCs) that employ physical security fuses or secure boot mechanisms.
The surprise here is not that laser fault injection is possible, but the level of precision and efficiency achieved. Previously, such attacks were often depicted as requiring expensive, specialized laboratory equipment and deep expertise, making them largely theoretical for most threat actors. This work suggests that the practical attack surface for physical attacks on embedded systems is broader than commonly assumed.
The researchers emphasize that this attack requires physical access to the device and sophisticated equipment, including a high-sensitivity infrared camera, a pulsed laser system, and precise environmental control. However, as the cost of such equipment decreases and the techniques become more refined, the threat becomes more tangible for manufacturers and users of embedded systems.
Mitigation Strategies and Future Research
Addressing this vulnerability will require a multi-pronged approach. Chip manufacturers can implement countermeasures such as internal shielding to block emitted photons, randomizing the timing of critical operations, or employing error-detection and correction codes that are resilient to transient bit flips. Redundant logic paths and active monitoring for unusual photon emission patterns could also be explored.
For developers using microcontrollers with similar security features, it is crucial to understand the physical security assumptions underlying their chosen hardware. Relying solely on on-chip secure debug features without considering physical attack vectors could leave sensitive applications exposed. Secure development practices should include an assessment of potential physical side-channel vulnerabilities.
This research opens up new avenues for security auditing and penetration testing of embedded systems. It challenges the industry to develop more robust physical security measures for microcontrollers, pushing the boundaries of what is considered secure in the realm of hardware security.
