Advanced Packaging Warpage Management Becomes Critical Process Control Issue

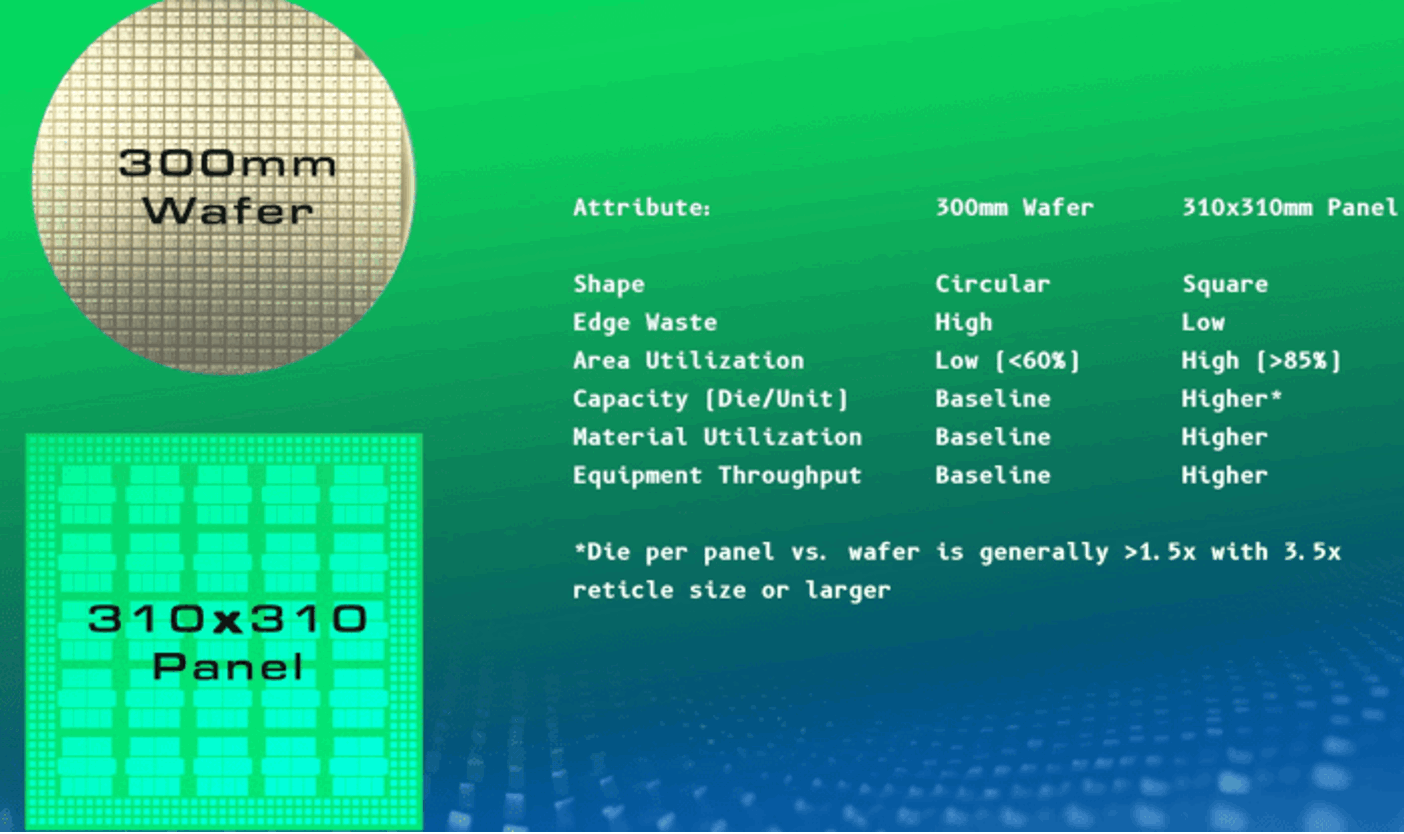

The Shifting Landscape of Semiconductor Package Flatness

The relentless drive for smaller, more powerful, and more integrated semiconductor devices has led to significant advancements in packaging technology. As chip designs evolve towards System-in-Package (SiP) and advanced 3D integration, the physical dimensions and construction of these packages are also changing. Specifically, packages are becoming larger in footprint to accommodate more components and thinner to enable lower profiles and better thermal management. This evolution, however, introduces a growing challenge: warpage. What was once a simple flatness specification is rapidly escalating into a complex process-control problem that impacts yield, reliability, and performance.

Warpage, the deviation from a perfectly flat surface, is an inherent consequence of material properties, manufacturing processes, and thermal stresses within a semiconductor package. In traditional packaging, where packages were smaller and thicker, minor warpage could often be accommodated by the manufacturing process or by the inherent compliance of the substrate and interconnections. However, the current trajectory of advanced packaging—characterized by larger die, thinner substrates, and the integration of diverse materials with differing coefficients of thermal expansion (CTE)—exacerbates warpage. This is not merely an aesthetic issue; significant warpage can lead to mechanical failures, poor electrical contact, and difficulties in subsequent manufacturing steps like die attach, wire bonding, and underfill encapsulation.

The fundamental shift is that warpage is no longer a post-manufacturing quality check but a critical factor that must be managed throughout the entire fabrication and assembly process. Companies are now investing in sophisticated modeling, new materials, and advanced metrology to understand and mitigate warpage at every stage. This includes analyzing the impact of each material layer, the sequence of assembly steps, and the thermal cycling experienced during manufacturing. The goal is to ensure that packages remain within acceptable flatness tolerances, not just for final testing, but for the integrity of each intermediate step.

Root Causes and Amplifying Factors of Warpage

Several factors contribute to warpage in advanced semiconductor packages. The primary driver is the mismatch in the coefficients of thermal expansion (CTE) between different materials used in the package construction. Silicon die, molding compounds, substrate materials (like organic laminates or ceramics), and underfill materials all expand and contract at different rates when subjected to temperature changes during manufacturing or operation. As packages grow larger, these CTE mismatches are amplified across a greater distance, leading to larger bending moments and thus more significant warpage.

The thinning of packages also plays a crucial role. Thinner substrates have less inherent stiffness to resist the bending forces induced by CTE mismatches. This makes them more susceptible to deformation. Furthermore, the increasing density of components and interconnects within these advanced packages can create localized stress concentrations that contribute to warpage. The sequential nature of assembly processes, such as sequential die attach or the application of underfill, can also introduce stresses that accumulate and manifest as warpage.

Moreover, the trend toward heterogeneous integration, where different types of chips (e.g., logic, memory, RF, power) are co-packaged, introduces a complex array of materials and thermal profiles. Each component may have its own CTE and generate its own heat, leading to non-uniform temperature distributions across the package. This non-uniformity is a potent source of warpage, as different regions of the package will expand or contract differently. Even the molding process, intended to protect the chip, can induce significant stress and warpage due to the exothermic curing of the molding compound and the differential cooling rates of the package components.

Strategies for Warpage Mitigation and Management

Addressing warpage requires a multi-pronged approach, involving simulation, material science, process optimization, and metrology. Advanced simulation tools are now indispensable for predicting warpage early in the design phase. By accurately modeling the material properties, layer stack-ups, and processing conditions, engineers can identify potential warpage issues before committing to expensive fabrication runs. These simulations help in selecting appropriate materials, optimizing layer thicknesses, and designing the package layout to minimize stress concentrations.

Material selection is paramount. Researchers are developing new molding compounds and underfill materials with CTEs that are better matched to silicon and substrate materials. The goal is to create a more homogenous thermal response across the package. Innovations in substrate technology, such as using low-CTE organic laminates or advanced composite materials, are also critical. Some approaches involve designing substrates with specific internal structures or reinforcement to enhance their resistance to bending.

Process optimization is another key area. This includes carefully controlling the temperature profiles during curing, bonding, and reflow processes to minimize thermal stress. Techniques like sequential dispensing of underfill or controlled cooling rates can help manage stress buildup. For larger packages, specialized pick-and-place equipment with active compensation mechanisms or staged handling might be necessary to maintain flatness during assembly.
